Maple Leaf Block Tutorial

So. I've been away a while. Most of you that read my little blog already know the reasons for my absence. Those that don't...well, we'll just leave it at this. Life gets in the way sometimes. Between some health issues in my family and the holidays and some other issues, I was needed elsewhere. That's done and life is returning to normal so I am. :)

Now, onto my post.

The members of Hive #2 of Newbee Quilters were asked to make a Maple Leaf block for January. Most tutorials for this pattern are for a 6" block. The few 12" block tutorials I found were either fiddly with too little (or none at all) wiggle room or weren't very detailed....both things most new quilters need. So...I decided to take photos while making a test block myself and post a tute for anyone that still needs it. The photos are poor as it was very late and lighting is horrible in this house. But they should be enough to help!

I do make this block slightly different than most other tutorials I've seen. I'm a bit...neurotic... about some things when I sew, which is the reason I do it differently. lol I like to make as many HST's at once as possible, and I prefer to make my HST's a bit large so that I can square up/trim them to the exact size after sewing...I include this little leeway and trimming space in my measurements below. Always sew with a scant 1/4" seam. There is as I said a little wiggle room here for some pieces, but accurate seam allowances are very important! SO.....practice. :)

On with the tutorial!!

You will need 2 fabrics...your main fabric and a background fabric.

From your Main fabric cut the following:
      3 - 4.5" squares
      1 - 7.25" square
      1 - 2"x7" rectangle

From your background fabric cut the following:
      2 - 4.5" squares
      1 - 7.25" square
Here's what you should end up with.

All the pieces you need for this block.

To create the HST (half square triangle) units:
      Take both 7.25" squares and lay them down right sides together.

sew edges

Sew around the outer edge 1/4" inch from the edge.You will essentially be sewing the two squares together on all edges.

sewn for 4HSTs

Once they are sewn together, take them to your cutting mat and cut both diagonals. This will create 4 HST units.

cut on both diagonals

Press all 4 units and trim/square up to 4.5". Set aside.

press - 4HSTs
Pressed but not yet trimmed.

For anyone not familiar with this method of creating HST units, please see the tutorial HERE. Things will make much more sense after seeing the photos. :)

To create the stem unit:
      Cut one of your background fabric 4.5" squares in half on the diagonal to create two triangle pieces.

Cut bgfabric on diagonal

Fold the triangles in half on the side you just cut to find the center point. Either crease or mark the center point (or both if you're like me and go for overkill ;). Take the 2"x7" rectangle of main fabric and draw a line at 3.5" (across the short side) to create your centerpoint there as sure this is straight!

Mark all the centerpoints
Arrows and my finger point to where I've marked my center points.

Line up the center mark on one triangle with the center line of the rectangle with right sides together. Sew together with 1/4" from edge.

lining up stem unit
Lined up my center marks before sewing. Use pins if it helps you!!

Repeat for other triangle/side of the rectangle and after a good press, you should end up with something that looks like this.

stem unit

I like to then fold the unit in half on the diagonal and line everything up to find the center of the stem. Using my iron I crease the ends. This makes it easier to square up my stem unit. Trim to 4.5" square, then press again to remove the crease.

Press crease
Arrow in right photo shows how I use the crease I created to square up the block to 4.5"

To finish the block:
      Lay out all the pieces of the block as they're supposed to be. At this point all 9 'units' should measure exactly 4.5". It is very important that when sewing these together you use a scant 1/4". If you sew with a true 1/4" seam you will end up with a block that measures shy of 12.5" after pressing. If this isn't something you're familiar with, I'll gladly explain the why's and help you learn how to sew a scant seam. Just leave me a comment or send me an email. :)


Sew together the pieces of each row. Press.


Sew the rows together to finish your block. Press.

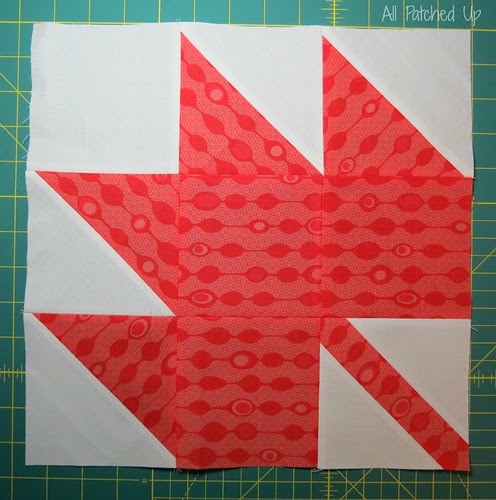

All finished!!

After everything is finished trim to 12.5" if necessary. If you've measured and trimmed everything correctly and used a scant 1/4" seam, the block shouldn't need any trimming. :)

Came out at exactly 12.5" :)

I hope this helps those of you that have been having trouble. If you have any questions or notice anything inaccurate or wrong, please let me know so I can get it fixed.
